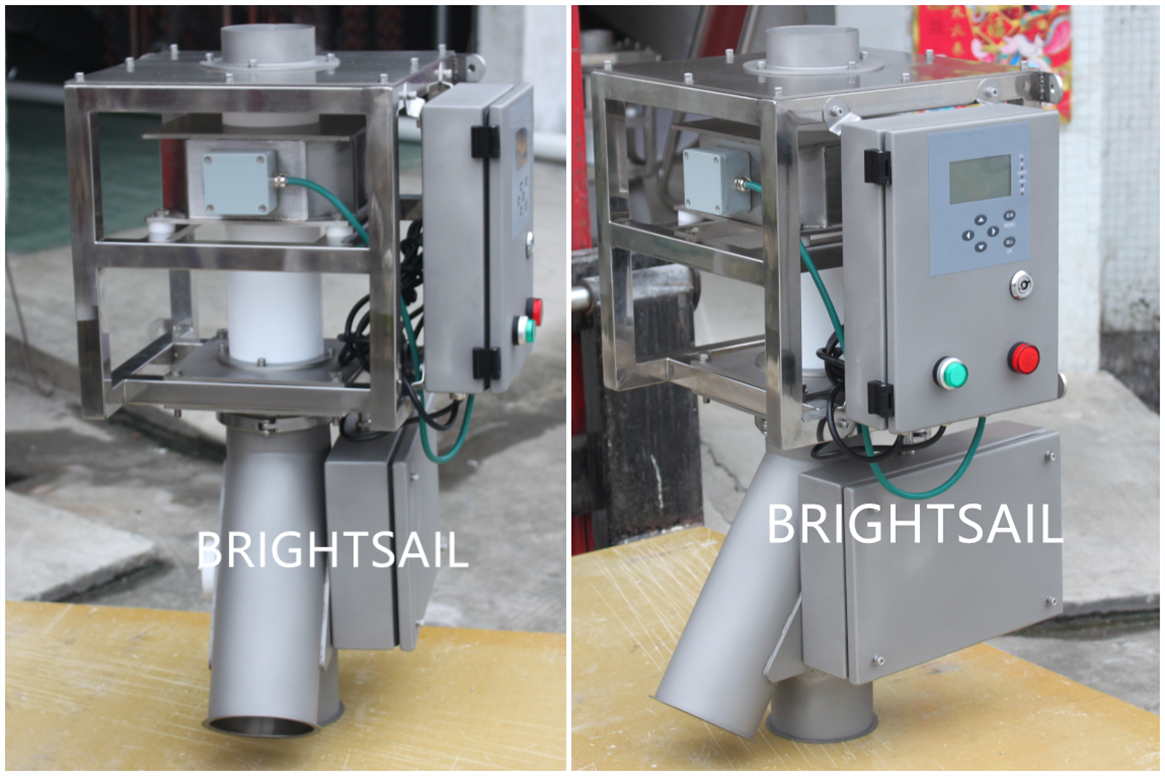

BSXR Falling Metal Detector



BSXR series digital metal separator is specially designed for the high-precision requirements of food and health products industry. Manufactured by German technology, it has high sensitivity, stable and reliable performance, and can quickly eliminate metal foreign matters in products.



Model BSXR-3500-50B BSXR-3500-70B BSXR-3500-100B BSXR-3500-120B BSXR-3500-150B BSXR-3500-200B BSXR-3500-250B
Feed diameter(Фmm) 50 70 100 120 150 200 250
Accuracy FeΦ 0.3mm 0.7mm 0.8mm 1.2mm 1.5mm 1.8mm 2.5mm
SUSΦ 0.6mm 1.0mm 1.2mm 1.5mm 2.0mm 2.2mm 3.8mm
Other Metal 0.3~0.6 mm 0.7~1.0 mm 0.8~1.2 mm 1.2~1.5 mm 1.5~2.0 mm 1.8~~2.2 mm 2.5~~3.8 mm
Compressed air 3~5Bar
Max capacity(L/h) 2000 5000 12000 16000 25000 44000 50000
Raw material temperature < 80℃
Unqualified material discharge time 0.3~5s
1. It has unique accuracy and can detect small metal objects in products;
2. It can handle multiple categories of products. In order to save space, a more compact rack design is adopted;
3. The detection sensitivity is higher than the industry standard, and the highest iron ball with diameter greater than 0.3mm can be detected;
4. The sensitivity can be adjusted according to the product characteristics, the detection and rejection times can be recorded in real time, and the records can be cleared manually;
5. All stainless steel, waterproof (IP66), anti vibration, strong adaptability to environmental and temperature changes and easy to clean;
6. The whole machine adopts modular design and assembly, with simple assembly, commissioning and disassembly, convenient maintenance and low maintenance cost;
7. "Y" type material rejection specially designed for powder products can effectively prevent material leakage and reduce product waste;
8. Waterproof, dustproof, shockproof and explosion-proof can be customized according to the environmental and safety requirements of the production site to ensure the safe use of the equipment;
9. Multi language function selection (Chinese, English, Japanese, etc., other languages can be customized as needed).
