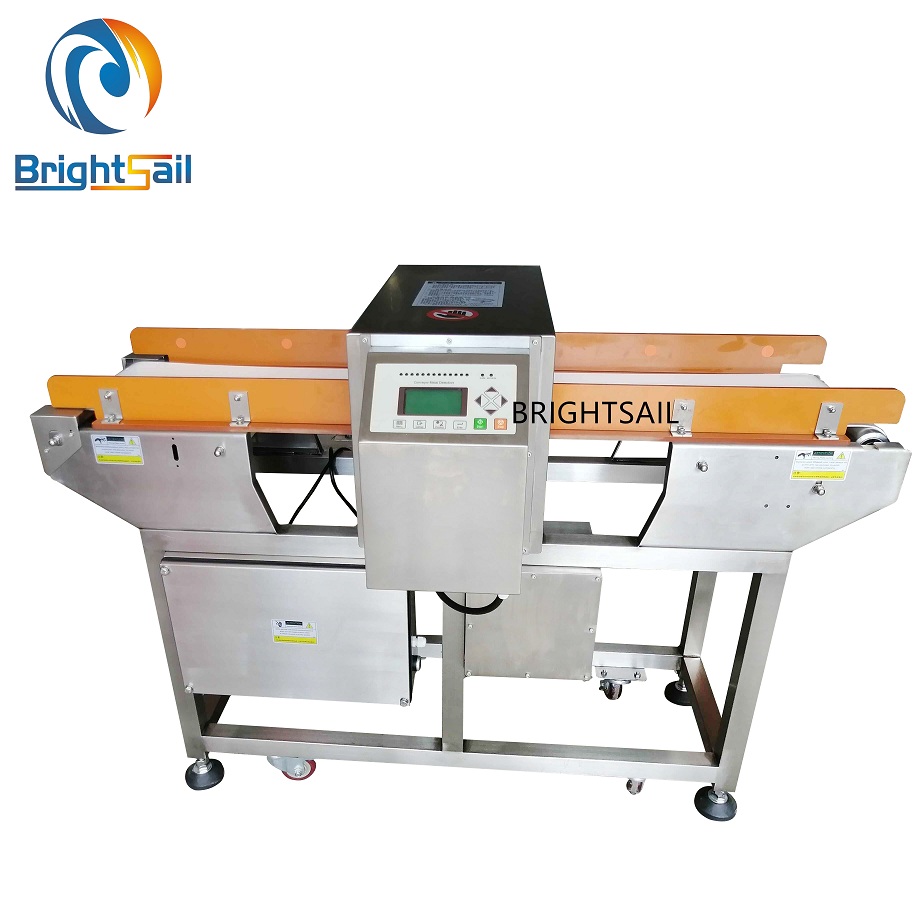

XR-980 Belt Type Metal Detector

This is belt type metal detector machine,mainly used to detect metal impurities mixed into products or raw materials during production and processing.

This machine is mainly used for testing food, bread, steamed buns, steamed buns, products such as dumplings, biscuits and other metal impurities and metal foreign bodies as well as pharmaceuticals, toys, clothing, footwear, chemical, leather, knitting and other industries detection products or raw materials in the production process mixed with metal impurities. Such as: Iron and non-ferromagnetic metal items (iron, copper, aluminum, stainless steel and other Non-ferrous metal can be detected) , improve product Factor of safety, improve product quality.

Model XR-980
Type standard machine Non-standard machine (special specification)
Detection channel width(mm) 400 Non-standard machine (special specification)
Detecting channel height(mm)(≤200) 100 120 150 200 250 300 350 400
Calibration detection sensitivity Iron ball diameter(Φmm) ≥0.6 ≥0.8 ≥1.0 ≥1.2 ≥1.5 ≥2.0 ≥2.5 ≥3.0
Diameter of non-ferrous metals such as copper and aluminum(Φmm) ≥1.2 ≥1.2 ≥1.5 ≥1.5 ≥2.5 ≥3.0 ≥4.0 ≥4.5
304 stainless steel ball diameter(Φmm) ≥1.2 ≥1.5 ≥2.0 ≥3.0 ≥3.5 ≥3.5 ≥4.0 ≥4.5
Type of alarm Detect metal foreign matter automatically stop running, buzzer alarm or remove
Material The whole frame is made of 304 mirror stainless steel
Size(mm) 1330×750×1100(L×W×H)
Weight About 180KG
Note: the above sensitivity parameters are the test results of the air machine without environmental interference,the actual application will be slightly different due to the interference of the use environment and the components of the detected object!

1. Close technical cooperation with METTLER TOLEDO, the world leader in weighing and metal detection technology.

2. The core part is carefully developed with advanced digital technology and original imported chips. The inside of the detection coil is formed by potting at one time. It has the characteristics of high detection accuracy, stable performance, and strong anti-interference ability.

3. It can be produced in multiple frequencies according to product characteristics, and has a product testing data storage function, which can store more than 100 product testing data and has a wide range of applications.

4. Using intelligent recognition technology, with self-learning and memory functions, it can automatically recognize and remember the characteristics of the product, and effectively eliminate the interference caused by various "product effects".

5. Simple and friendly operation interface, using a dialogue LCD screen, can quickly and conveniently set parameters through a simple key control interface; can detect a variety of products containing different product signals (characteristics), one setting can guarantee high The detection accuracy does not need to be re-adjusted and set up the program.

6. Meet the requirements of ISO, OHSAS, CE.

7. Shockproof and waterproof design, dustproof and waterproof function in line with international certification, anti-vibration and noise absorption, can adapt to harsh working environments.

8. Various reject devices (such as flaps, air blows, push rods, etc.) and lightweight, large-package special and load-bearing body designs can be adopted according to user needs.
