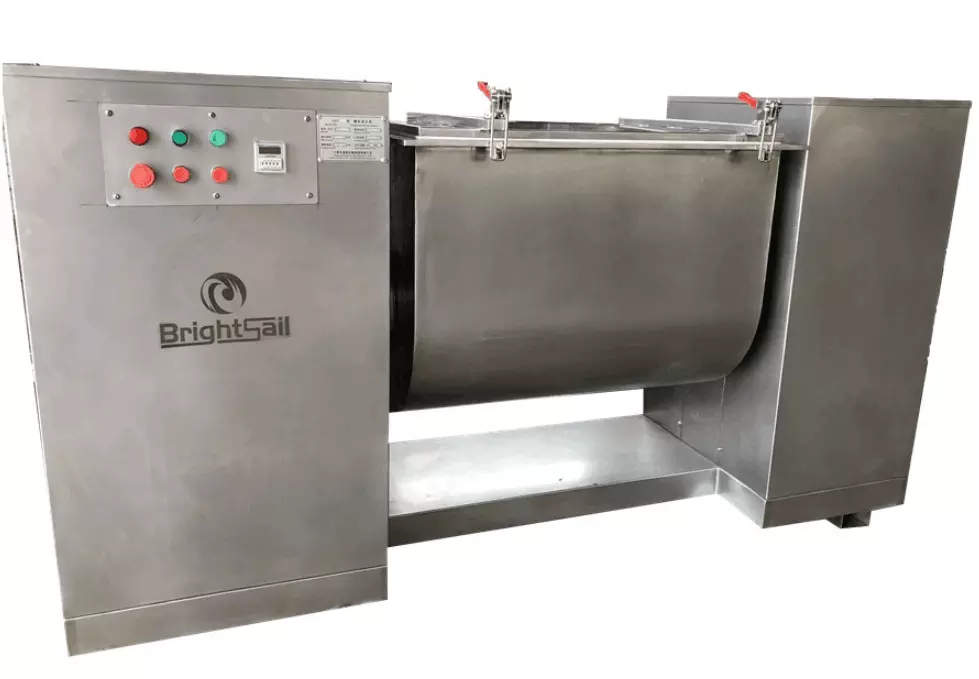

BST Series Through Shaped Mixer

Working Method:

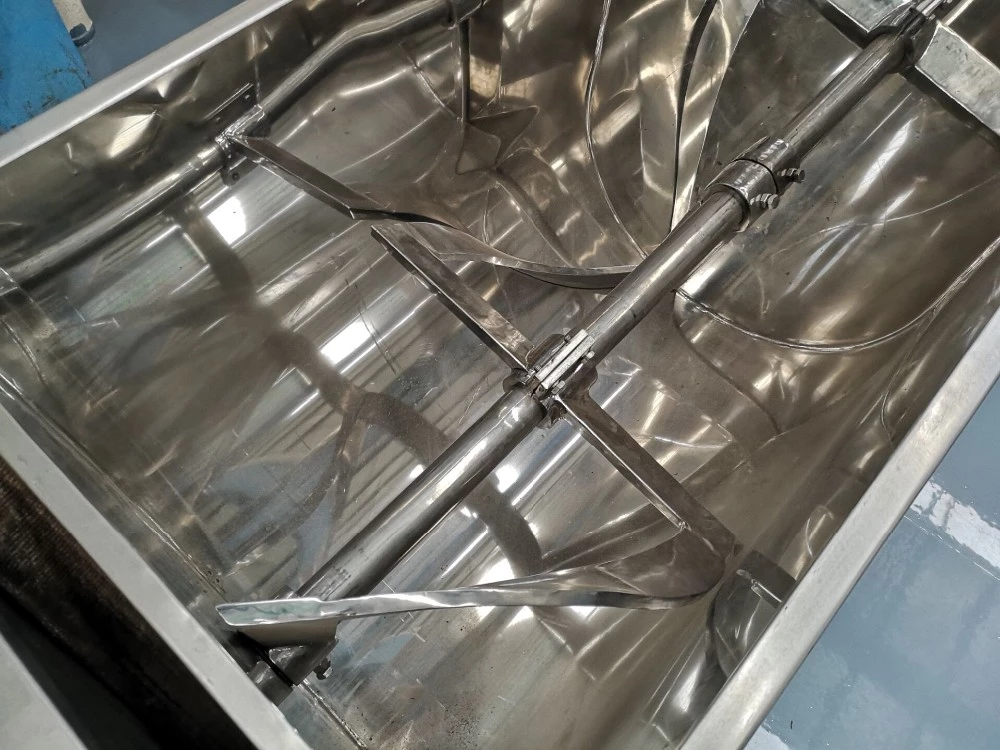

The machine is driven by mechanical transmission to make the S-type stirring paddle rotate, push the material to reciprocate, and mix evenly. The electric control is used during operation. The mixing time can be set, the machine will stop automatically, and the motor will be dumped, thus improving the mixing quality of each batch of materials, achieve a high uniformity of mixing.


Specifications:


1.chemical blender mixer
2.stainless steel 304
3.can mix liquid and powder

4.with CE

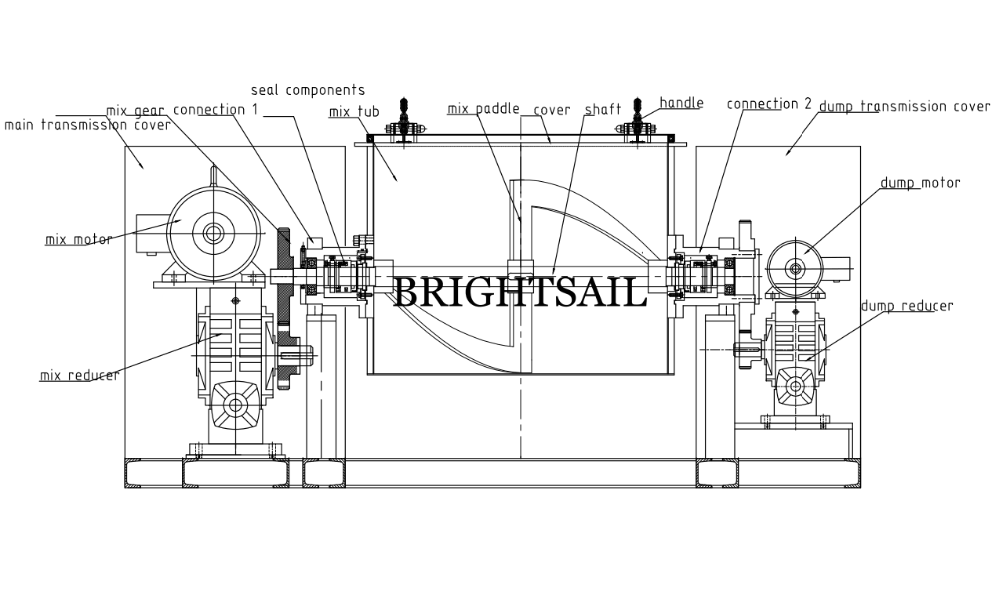

Drawing:



Model
Barrel volume(L)
Mixing speed(rpm)
Mix motor(KW)
Dumping motor(KW)
overall size(L*W*H)(mm)
Weight(kg)
BST-50
50
24
1.5
0.75
1200×500×600
320
BST-100
100
24
2.2
0.75
1400×580×1000
350
BST-150
150
24
3
0.75
2000×630×1150
410
BST-200
200
24
4
1.1
2300×750×1350
450
BST-300
300
24
5.5
1.5
2700×850×1500
520
BST-500
500
24
7.5
2.2
2700×800×1400
800
BST-1000
1000
24
15
3
3350×1100×1550
1400

1. The discharge motor can be used to tilt the stirring tank, which is convenient for discharging.

2. There are unidirectional thrust ball bearings and radial thrust ball bearings at both ends of the stirring shaft to prevent radial turbulence caused by negative stress.

3. Improved the seal at both ends of the stirring shaft, which can be completely sealed and does not pollute the material.

4. When using slow running, it is easy to discharge, and will not cause the phenomenon of excessive tilt of hopper.

5. Add the raw material to the drum in one time, dry for a period of time, add adhesive or spray, or add the raw material and adhesive to the working container in one time, mix into the ideal soft material.
