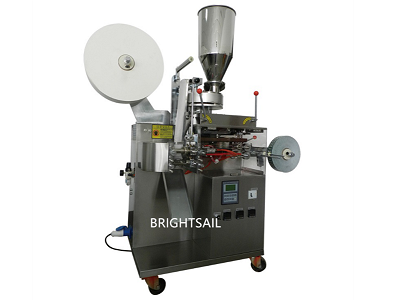

Automatic tea bag tape line and label packaging machine can automatically complete the functions of bag making, measuring, filling, sealing, cutting, counting and so on. The packaging bag has a lifting thread and an original labeling device.

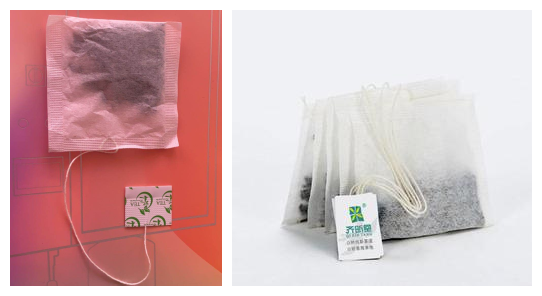

Type of packing bag:
Model
|
BS-C12
|
Metering method
|
volumetric method
|
Packing material
|
Tea filter paper, cotton thread, label.
|
Capacity packing
|
Crushed tea about 1.5~5g, 3~15ml
|
Bag size
|
L:50 ~ 75 mm W:50 ~ 75 mm
|
Tag size
|
L:18~23mm W:28mm
|
Packaging speed
|
40 bags/min
|
Overall dimension
|
900mm* 950mm* 1800mm
|
Total weight
|
350KG
|
Power source
|
220V/50HZ/1.6KW
|
The packaging pouches with drawing line and tag. The process of bag making, measuring, filling, sealing, cutting and counting can be done automatically.
1. All stainless steel cover meets to GMP Standard.
2. Equipped with antipollution and dustproof device
3. Adjustable measuring cup-adjust the measuring under the case of downtime
4. Sealing part: roller spend process is special designed and the effect of sealing is very well.
5. The function of automatic counting is available for customers to pack
6. At the ends of cross sealed of inner and outer bags have oiling holes, regular oil guarantees that the machine operate lubricating, adequate lubrication can reduce the failure rate and improve the service life of the machine
7. The maximum advantage of this machine is that the feeding structure inside the machine beyond the traditonal feeding form, greatly improve the rates of the threads and tags which make the the rates of threads and pre-print on about 98-99%
8. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
