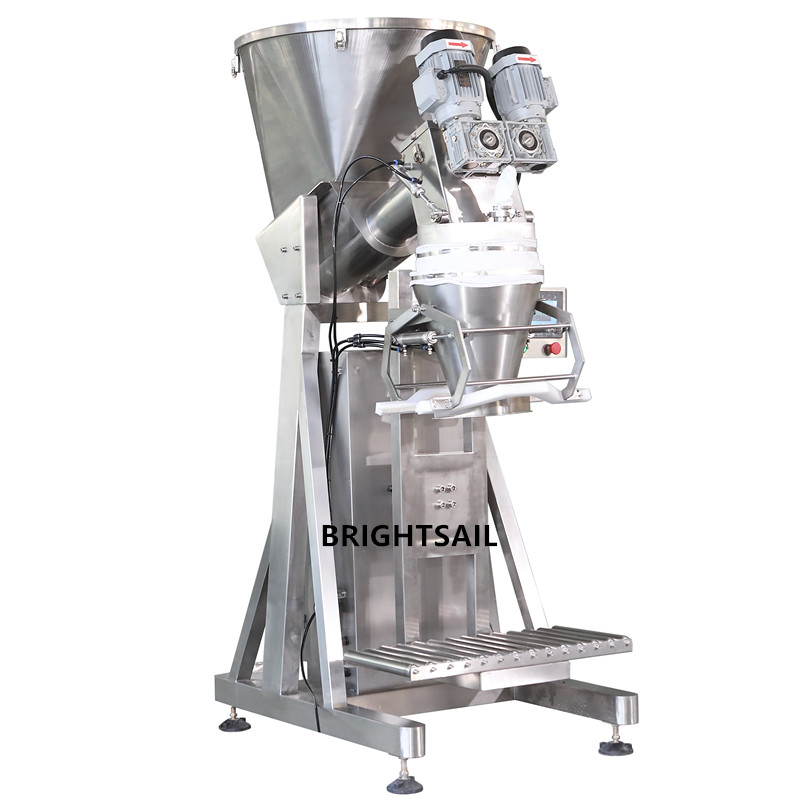

BSPM-2 big powder packing machine


Introduction:

BSPM-2 packing machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, detergeng powder, solid beverage, sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.



It uses PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision ,reliability and intelligentized level.



Technical data:

 Model BSPM-2
 Feed type double screw
 Measure methed by auger weighing
 Weigh range 4~50 kg
 Packing accuracy ≤1‰
 Pack speed 2~4 bags/minute
 Hopper size 150L
 Motor 2 KW
 Machine size 1000*1000*2300
 Remark

when pack 4~10 kg bags, accuracy is ±10g

when pack 10~25 kg bags, accuracy is ≤1‰


1. Equipped with safety protection, comply with firm’s safety management requirements.

2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.

3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision, reliability and intelligentized level.

4. Touch screen can store the technical parameters of various kinds of products, it is unnecessary to reset while products changing.

5. With error indicating system, which help to handle the trouble immediately.

6. Make pillow bags and hanging bags in terms of customers different requirements.
